ماژول شارژ باتری لیتیوم-یون 2 سل 8 آمپر – 8.4 ولت مدل HX-2S-A10قابل استفاده با باتری های لیتیوم-یون با ولتاژ های 3.6 یا 3.7 یا 4.2 ولت.
Product description:

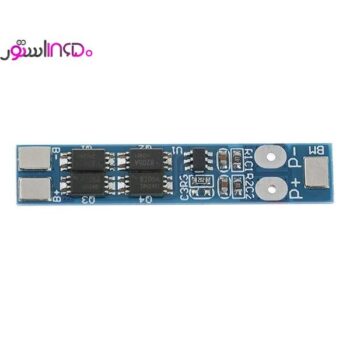

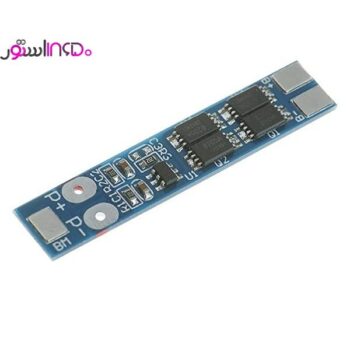

HX-2S-A10 2S 8A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger
protection module. This small and smart battery charger protection module comes with the various features like Short circuit protection,
Overcharge protection, Over-discharge protection, Over current protection. It is very easy to install and convenient to use in all your DIY
portable projects.
Specifications:
- Charging Voltage: 8.4V-9V
- Overcharge Voltage Range: 4.25V-4.35V plus or minus 0.05V
- Over pressure Voltage Range: 2.3V-3.0V plus or minus 0.05V
- Upper Limit Operating Current: 8A
- Upper Limit Instantaneous Current: 16A
- Quiescent Current: less than 10uA
- Internal Resistance: less than 300mΩ
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- +50 Celsius
- Storage Conditions: -40- +80 Celsius
- Short circuit protection: Can be protected, charge recovery required
- Size: 41mm x 8mm x 2.2mm/ 1.61″ ×0.31″×0.09″(L x W x H)
Attention:

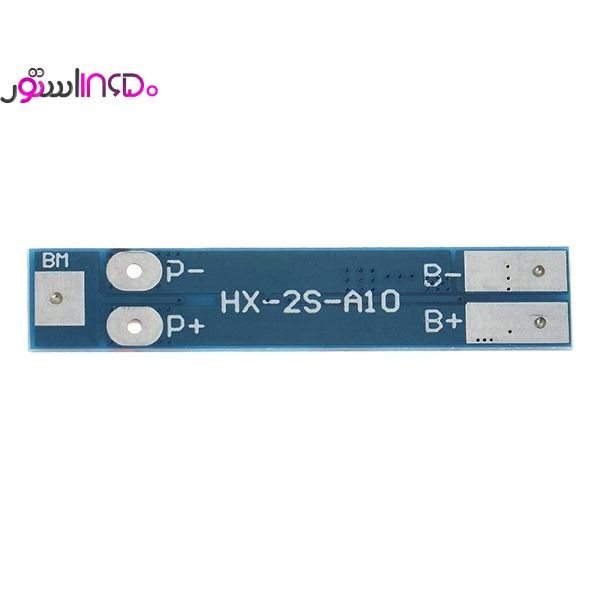

Strictly according to the diagram wiring:
B+: Battery
V+ Positive,
B-: Battery
V- Negative
P+: Output / Charging V+,
P-: Output / Charging V-,
MB: The connection point between the batteries Otherwise it will cause damage to the chip.
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Tips:
the product must be connected to a 8.4V charging voltage through p+ and p- before it will create voltage on pads Or you can activate this BMS by momentarily shorting b- and p-.
2S 8A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This protection board can not be used for lithium iron phosphate battery.
It has high-accuracy voltage detection circuit, fine workmanship and durable, and effective life greater than 50000 hours. It has also over-discharge protection, overcurrent protection, overcharge protection, short circuit protection, A combination of 4 safety features that work together to provide ultimate protection for your devices, your chargers. It’s MOS transistor can control the battery charge and discharge, low standby current consumption.
Specification HX-2S-A10:
- Charging Voltage: 8.4V-9V
- Voltage Range: 4.25V-4.35V plus or minus 0.05V
- Voltage Range: 2.3V-3.0V plus or minus 0.05V
- Operating Current: 8A
Features HX-2S-A10:
- Overcharge protection
- Over discharge protection
- Short circuit protection
- Overcurrent protection
