ماژول شارژ باتری لیتیوم-یون 3 سل 10 آمپر – 12.6 ولت

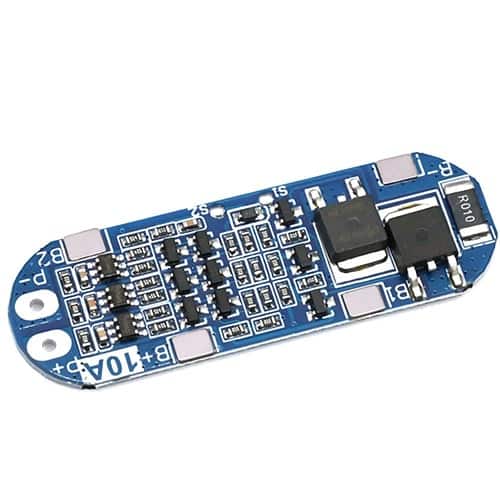

3S 13A Li-ion Battery Protection Board BMS PCM HX-3S-FL10A-A

Features:

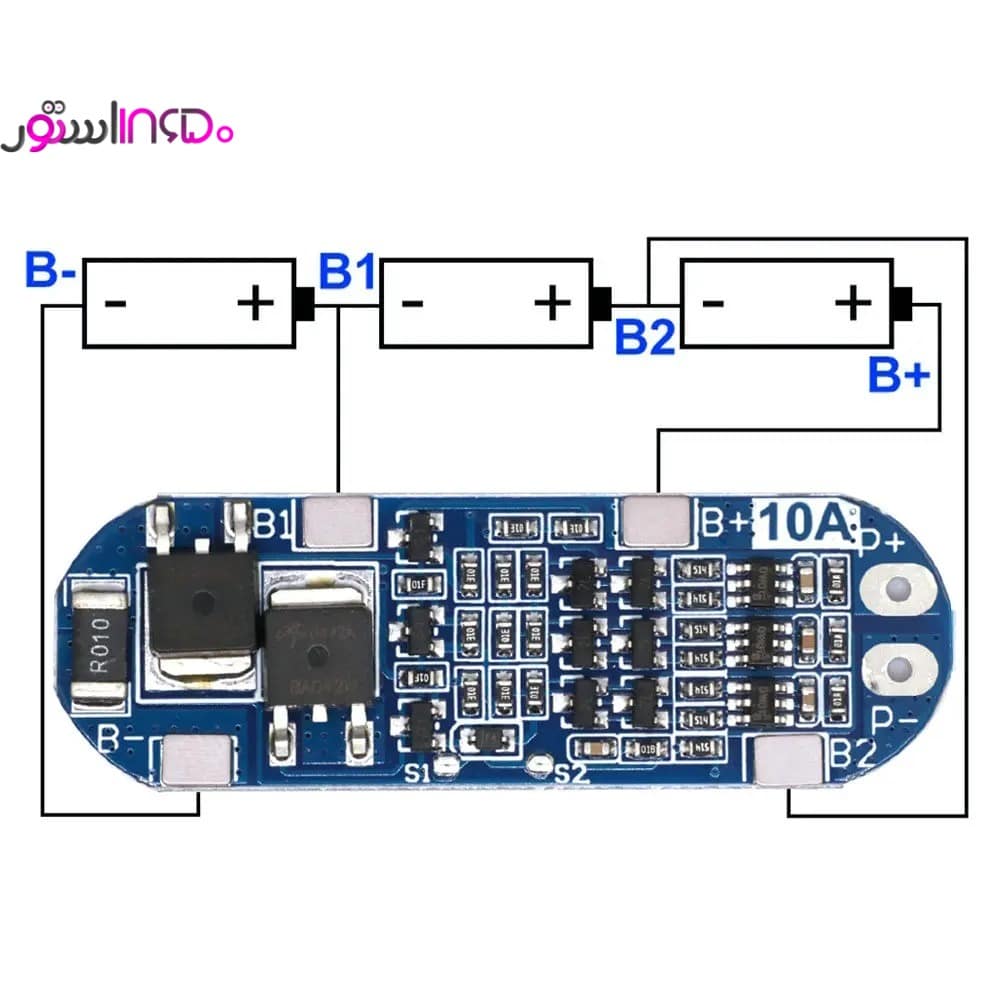

• Three series of lithium battery protection board
• Automatically cancel protection after protection conditions restore
• With function of overcharge protection, over discharge protection, short circuit protection, over-current protection
• Suitable for lithium battery pack of 11.1V, 12V, 12.6V
• Fine workmanship and durable
• Quiescent current <30uA, so power consumption is small.

Specifications:

• Model: HX-3S-FL10-A
• Dimension: 53 x 14 x 4 mm
• Weight: 3.5 g
• Over Voltage Range: 4.25-4.35V ±0.05V
• Over Discharge Voltage Range: 2.3-3.0V ±0.05V
• Maximum Operating Current: 6-8A
• Maximum Transient Current: 10-13A
• Quiescent Current: <30uA
• Internal resistance: <100mΩ
• Charging Voltage: 12.6 – 13V
• Working Temperature: -40~+50℃
• Storage Condition:  -40~ +80℃
• Effective Life: > 30000 hours
• Short circuit protection: Yes, delayed self recovery
