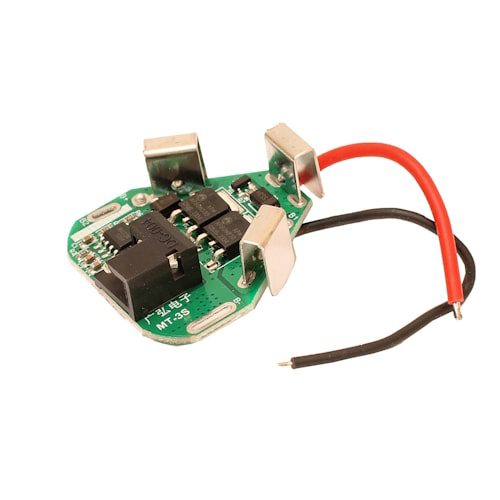

ماژول دریل و پیچ گوشتی شارژی لیتیوم-یون 3 سل 15 آمپر MT-3S – دو ماسفتنحوه اتصال به باتری:
سازگاری با باتری های لیتیوم-یون با ولتاژ های 3.6 یا 3.7 یا 4.2 ولت
Item Type: Lithium Battery Protection Board
Product name: Protection Board
*Upper operating current: 8A
*Upper transient current: 40A±5A
*Overcharge range: 4.25±0.05V
*Over disvoltage range: 2.5±0.05V
*Charging voltage:12.6-13V
*Overcharge Protection delay: 1000mS
*Overdischarge Protection delay: 1000mS
*Overdischarge current 1 delay: 1000mS
*Overdischarge current 2 delay: 125mS
*Short circuit delay: 300uS
*Static continuous working current: 5~15A
*Overdischarge overcurrent protection current: 26A±2A
*Size: (Approx. ) 33.7*36.5mm
*Function: over charge/ over discharge/short circuit/ over current protection
*Quantity: 1Pc
1. This protection board adopts dedicated lithium battery protection chips as central control, featuring high integration and high sensitivity.
2. Protect battery against overcharge, over discharge, over current, short circuit through detecting current and voltage of each battery.
3. Parameters can be adjusted by external circuit.
4. The scheme design of the protection board is mature and the quality is excellent.
5. Suitable for the battery pack of 3S 18650 lithium battery cordless drills.
توسط قیوم شاهی در تاریخ خریدار این محصول
اگر برد شارژ اصلی خود شرکت در دسترس نبود گزینه عالی هست.
توسط ابوالقاسم فرجی نیا در تاریخ خریدار این محصول
اينو من گرفتم براي دريل شارژي ام. اما اتصال دو تا سيم مشكي و قرمز را كه ديدم شك كردم چون با نقشه شماتيك ماژولهاي ديگه نمي خونه. مثلا سيم منفي اش به جاي B0 به B1 وصل شده. فعلا گذاشتمش كنار.
توسط مصطفی حیدری در تاریخ خریدار این محصول
عالی
توسط سروش ریاحی در تاریخ خریدار این محصول
بسیار عالی. قیمت معقول و کیفیت مطلوب.
