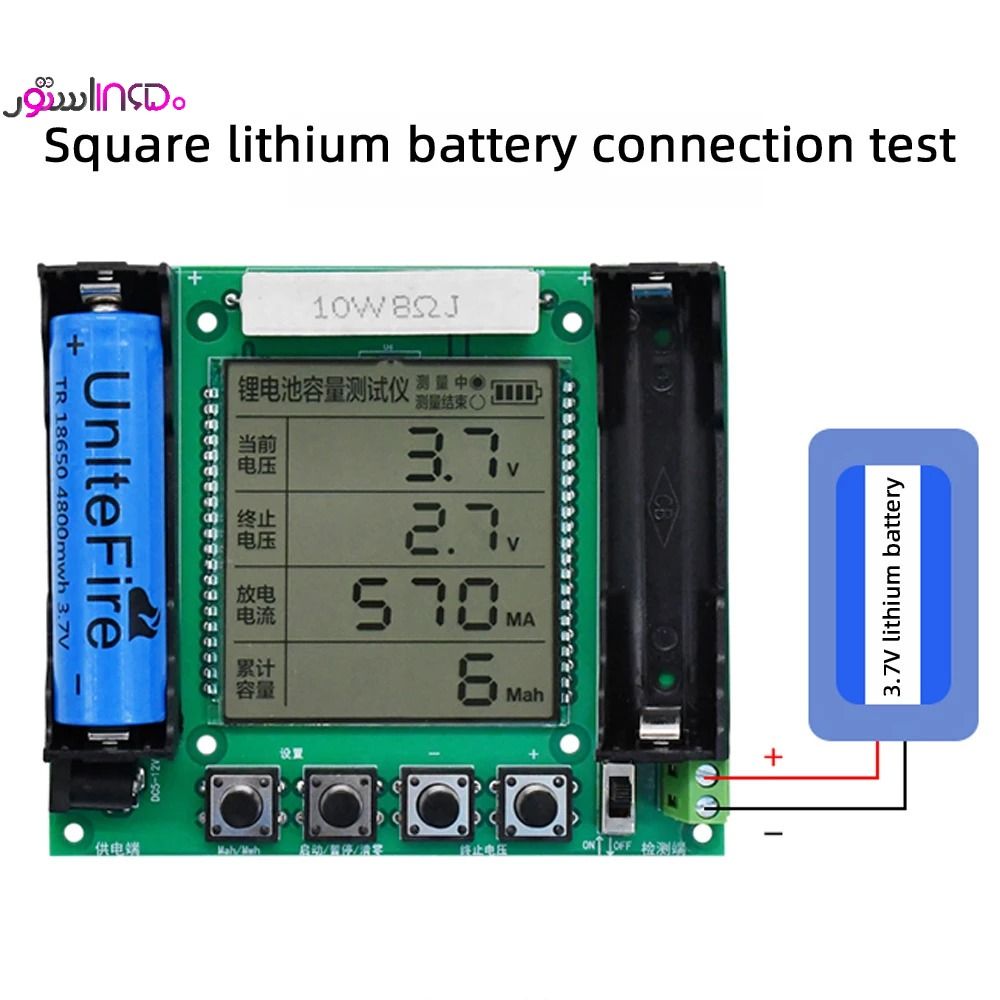

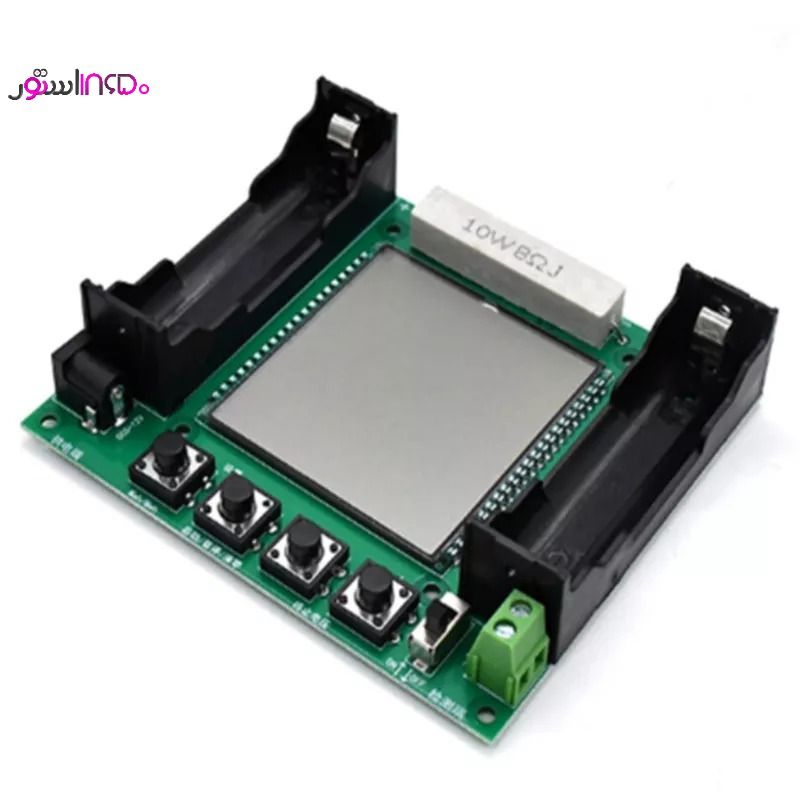

تستر ظرفیت باتری 18650 لیتیوم-یون XH-M239 (بدون آداپتور)

XH- M239

دقت نمایشگر: 0.1

دقت اندازه گیری: 1 میلی آمپر ساعت

ولتاژ تغذیه دستگاه: 5 تا 12 ولت Dc

حداکثر جریان دشارژ باتری ها: 500 میلی آمپر ساعت

مقدار بار مقاومتی: 10 وات - 8 اهم

Product name: 18650 lithium battery capacity tester
Product model: XH- M239
Display accuracy: 0.1

Measurement accuracy: 1mAH

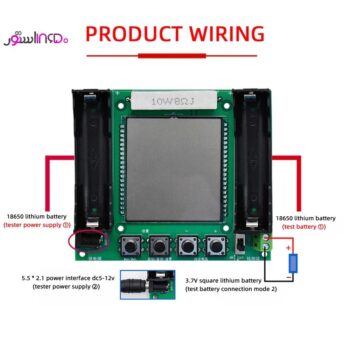

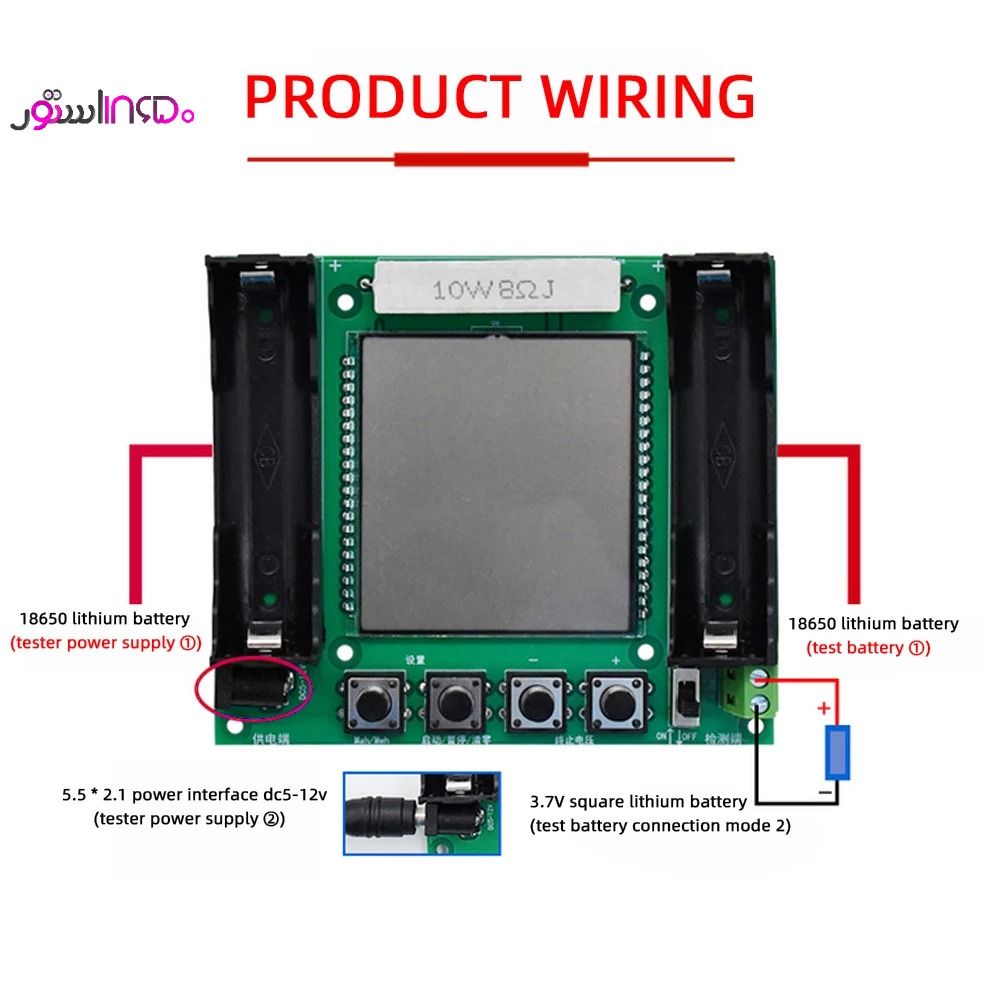

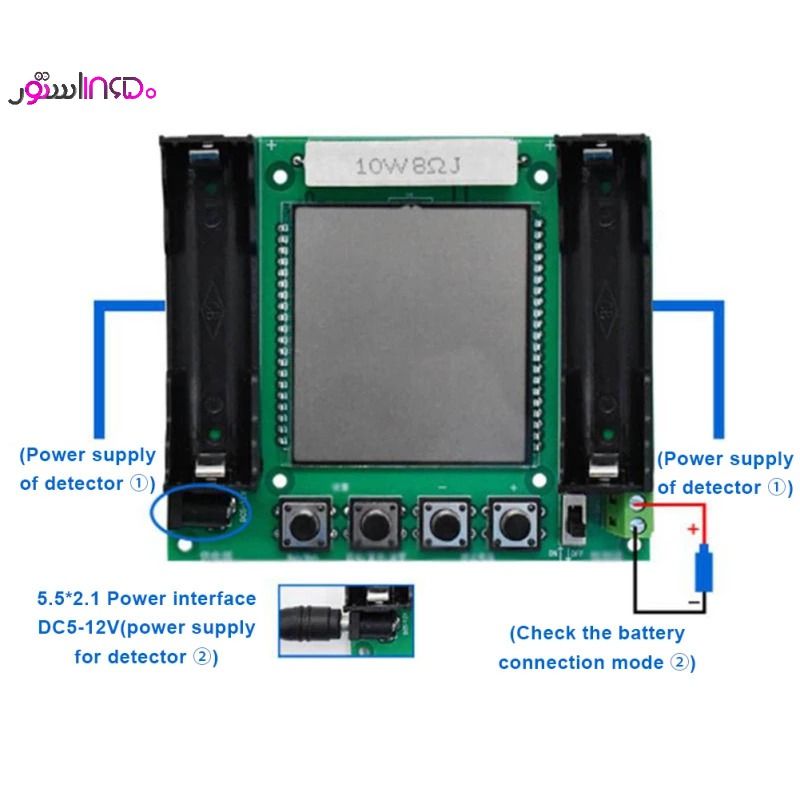

Power supply voltage: DC5- 12V/18650 battery standby current: 5mA

Discharge current: about 500mA

Load power: 10W 8Q

Appearance size: 111*97*25mm

T104mm-60mm

Installation size: 3mm in the figure on the right

Product weight: 93g

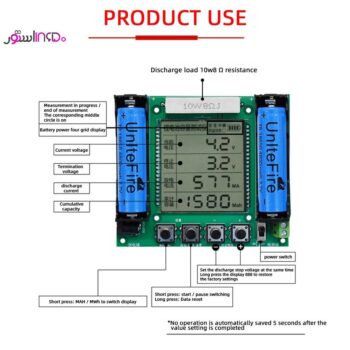

Set the discharge stop voltage and press the display 888 to restore the factory setting at the same time.

Short press: start / pause switching

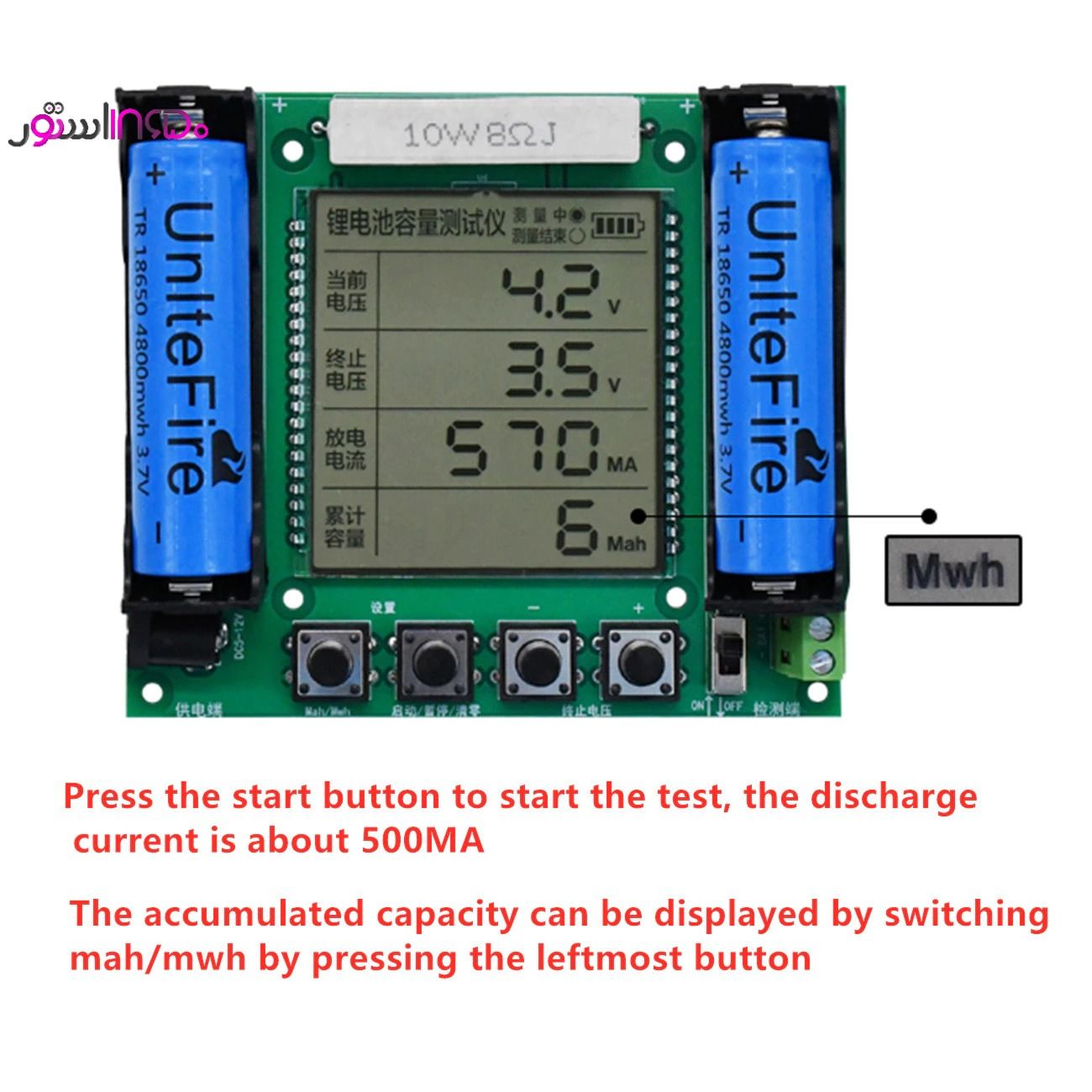

Short press: mAh/mWh toggles display\

Long press: data zero

* * automatic save without operation 5 seconds after the value setting is complete

:Measurement time calculation

Assuming that the battery capacity is 2000mAh, the discharge current of this detector is about 500mAH. the measuring time is about 4 hours
