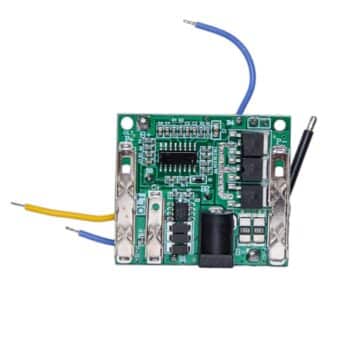

ماژول شارژ باتری 5 سل 25 آمپر – 21 ولت
قابل استفاده با باتری های لیتیوم-یون با ولتاژ های 3.6، 37 و 4.2 ولت. همانطور که از نام این محصول مشخص است وظیفه اصلی آن مراقبت از باتریهای لیتیومی قابل شارژ میباشد. باتریهای لیتیومی به خاطر داشتن ویژگیها و مواد تشکیل دهنده خاص، باید در مقابل شارژ بیش از اندازه محافظت و مراقبت شوند. این ماژول، محافظ شارژ و دشارژ 5 سل 21 ولت 15 آمپر برای باتری های لیتیومی است.
Specifications:
1. Discharge: Large discharge current: 15 A; Instant discharge current: 25 A.
2. Charging: Charging voltage: 21 V; Charging current: 15 (MAX) A.
3. Overcharge protection: Overcharge voltage: 4.28±0.05 V; Overcharge protection delay time: 0.5 S; Overcharge release voltage: 4.08±0.05 V.
4. Power balance: Cell balance voltage: / V; Power balance release voltage: /V; Cell balance current: / mA.
5. Over-discharge protection: Over-discharge voltage: 2.55±0.08 V; Over-discharge delay: 0.1 S; Over discharge release voltage: 2.9±0.1 V.
6. Over current protection: Overcurrent voltage: 150 mV; Overcurrent delay: 9 MS; Overcurrent protection current: 30±3 A; Overcurrent protection release condition: disconnect the load.
7. Short circuit protection: Short-circuit protection conditions: short-circuit of external load; Short circuit delay: 250 uS; Short-circuit protection release conditions: disconnect the negative switch.
8. Temperature protection: temperature protection / ℃.
9. Internal resistance: The main circuit conduction internal resistance ≤20 mΩ.
10. Self-consumption: Working current: ≤30 uA; Sleep current (when the battery is over-discharged): ≤10 uA.
11. Working temperature: The temperature range is -30~+80 ℃. 5 series of 18.5V21V power tools. It is a special lithium battery protection board for solar energy, lighting, and 18650.

این مدار محافظت از شارژ می تواند پک های باتری لیتیوم یون با ولتاژ خروجی 18 تا 21 ولت (در حالت شارژ کامل باتری ها تا اتمام شارژ باتری ها) با تکنولوژی های محافظت از اضافه شارژ باتری ها، محافظت از خالی شدن بیش از حد باتری ها و اتصال کوتاه استفاده شود.
