ماژول شارژ باتری لیتیوم-یون 3 سل 40 آمپر – 12.6 ولتسازگاری با باتری های لیتیوم-یون با ولتاژ های 3.6 یا 3.7 یا 4.2 ولت

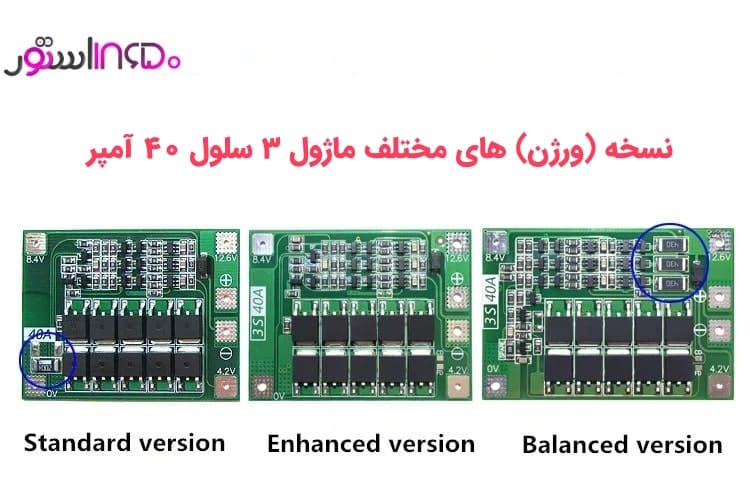

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use).
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).
The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.
Features:
3S 11.1V 12.6V 40A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery).
Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery).
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use).
Continuous charge current (upper limit): 20A.
Suitable for the drills with starting current below 80A, power 135W below.
Note:
The Successful start of the drill requires a three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 cannot start the drill!!).
Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above25V, capacity 10uF-100uF) to the motor’s positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use it in series. The Discharge test, the voltage drop faster battery that group is a poor battery.
از این مدار محافظت از شارژ می توان پک های باتری لیتیوم یون با ولتاژ خروجی 12.6 تا 9 ولت (در حالت شارژ کامل باتری ها تا اتمام شارژ باتری ها) با تکنولوژی های محافظت از اضافه شارژ باتری ها، محافظت از خالی شدن بیش از حد باتری ها و اتصال کوتاه استفاده شود.
برای مشاهده هیت سینک های موجود، اینجا را کلیک کنید.
توسط کاربرگرامی در تاریخ
متاسفانه عدم معرفی کامل و مشخصات این محصول و ۶۰ آمپر آن باعث خرید اشتباه من از فروشگاه شما شد. این محصول با توجه به تعداد و آمپر باتری ها نیاز به مدار کنترل جریان دارد و نیز برای بر قراری جریان در مصرف کننده باید ورودی آداپتر یا منبع تغدیه مجدد به آن متصل شود . این ماژول برای اتصال مداوم منبع تغذیه بوده و نبای ورودی آن قطع شود . یعنی هر بار برای روشن کردن چراغ باید منبع تغدیه به آن متصل شود!!!! این مطالب در فروشکاه های دیگر قید شده اگر استباه است ممنون میشوم اطلاع رسانی بفدمایید . با تشکر
توسط کاربرگرامی در تاریخ
۶ عدد باتری ۱۸۶۵۰ فول شارژ را ، ۳ سل وصل کردم چند روز که این ماژول بش وصل نبود شارژ کم نکرد ولی پس از وصل نمودن این ماژول یک روز بعد بدون اتصال به مصرف کننده شارژ باتری کم شد از ۱۲.۲ ولت به ۷.۳۶ ولت رسیده بود . علت چیست آیا این ماژول برای این تعداد باتری و آمپر مناسب نیست . بنظرم شارژر نیز مصرف کننده و منطقی نیست
توسط سیدابراهیم طباطبایی در تاریخ خریدار این محصول
۱۲ تا باتری لیتیوم به صورت ۳ سل درآوردم و ماژول شارژر ۴۰ امپر وصل کردم
دو بار باتری ها خالی شد گذاشتم شارژ حدود ۳ ساعته شارژ شد
نمیدونم طولانی چجوری جواب میده؟
اما بعد چند ساعت مصرف باتری ، فک کنم وقتی باتری ها خالی میشن ، خودش جریان رو قطع میکنه
